The advertising industry
The DMS intelligent cutting system, equipped with camera positioning, can achieve precise cutting of both plates and coils with high efficiency. Especially for the cutting of special-shaped graphics, the quality is high compared with manual cutting, and the efficiency is increased by more than 3 times; the efficiency of regular graphics cutting is about 2 times higher than that of manual cutting.

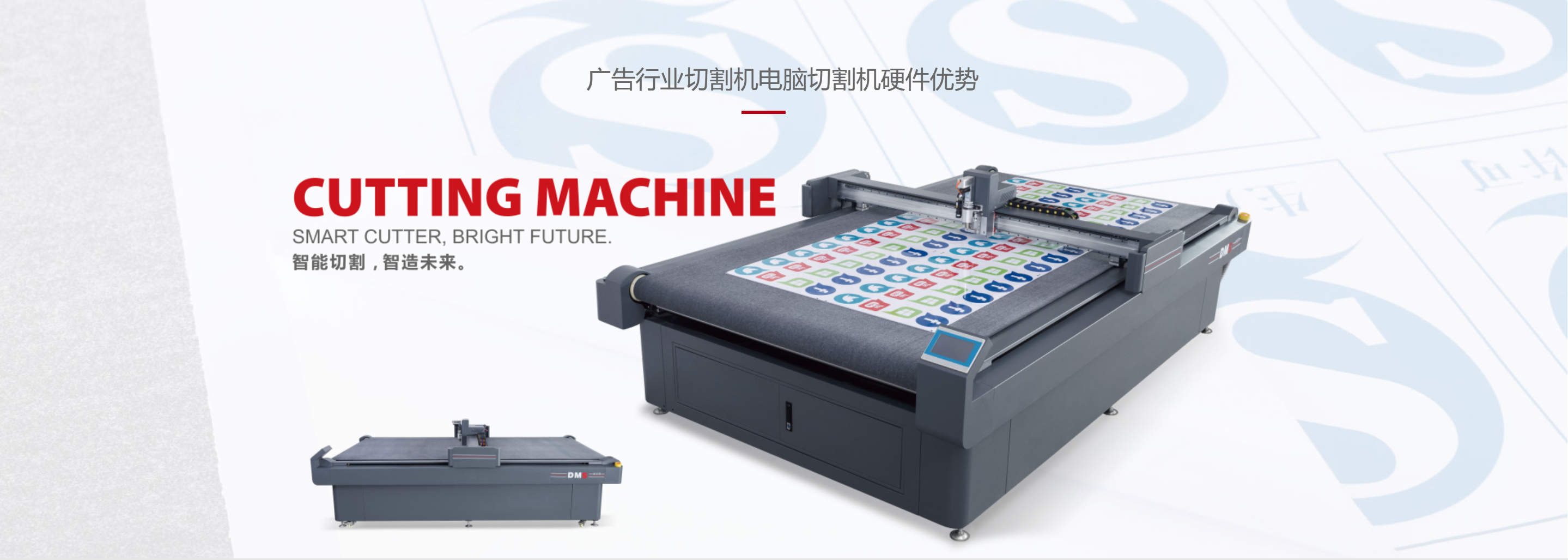

Dimax special-shaped cutting machine
It is mainly aimed at the post-processing of the advertising industry, providing it with high-performance, high-speed, high-quality integrated intelligent cutting solutions, quickly completing various processes such as full cutting, half cutting, milling, punching, creases, marking, etc., solving the problem of cutting special-shaped pictures, and meeting the production goals of small batches, multiple orders, and multiple styles. The entire series of equipment is equipped with high-precision CCD positioning and cutting functions as standard, which can easily complete various flexible material cutting tasks, and process high-quality advertising products faster, more stably, and more accurately, reducing cutting costs to a greater extent, improving cutting efficiency, and allowing customers to maintain a high level of competitiveness in the same industry.

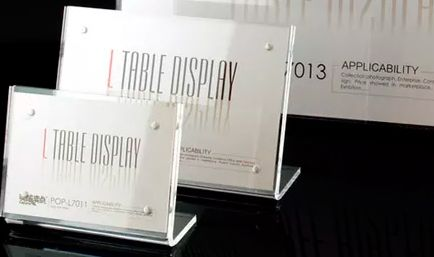

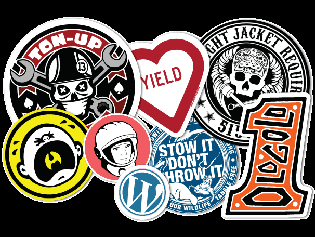

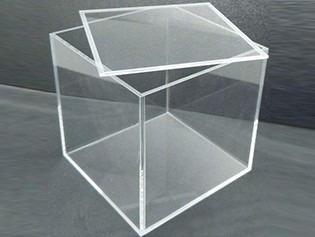

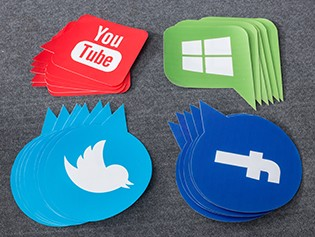

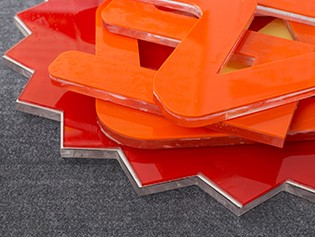

Applicable materials: PP paper, car stickers, KT board, Chevron board, stickers, corrugated paper, honeycomb paper, etc.
Suitable tools & application materials
car allowance

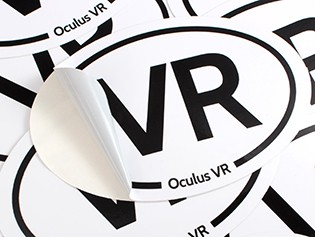

pp adhesive backing
car allowance

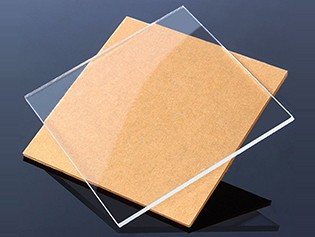

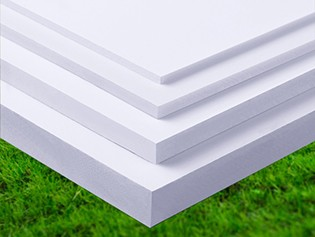

PVC board
Machine head design
Adopts the convenient replaceable machine head design concept, and can replace and add tool heads with different functions according to actual needs
Communication interface
The data interface is a gigabit network interface, which can realize remote upgrade and maintenance, with fast transmission speed and long distance.
Table design
Adopting advanced and mature rolling table design, aluminum "honeycomb" vacuum adsorption platform, maintains a flat cutting platform and improves cutting accuracy.
Control system
Self-developed human-machine interface operating system, humanized design, intelligent identification of knife cutting, and quick capture of cutting targets.
Imported felt
Imported felt is used, which is wear-resistant and breathable, ensuring the high flatness of the cutting platform.
Infrared anti-collision system
Safety anti-collision system ensures the safety of operators.

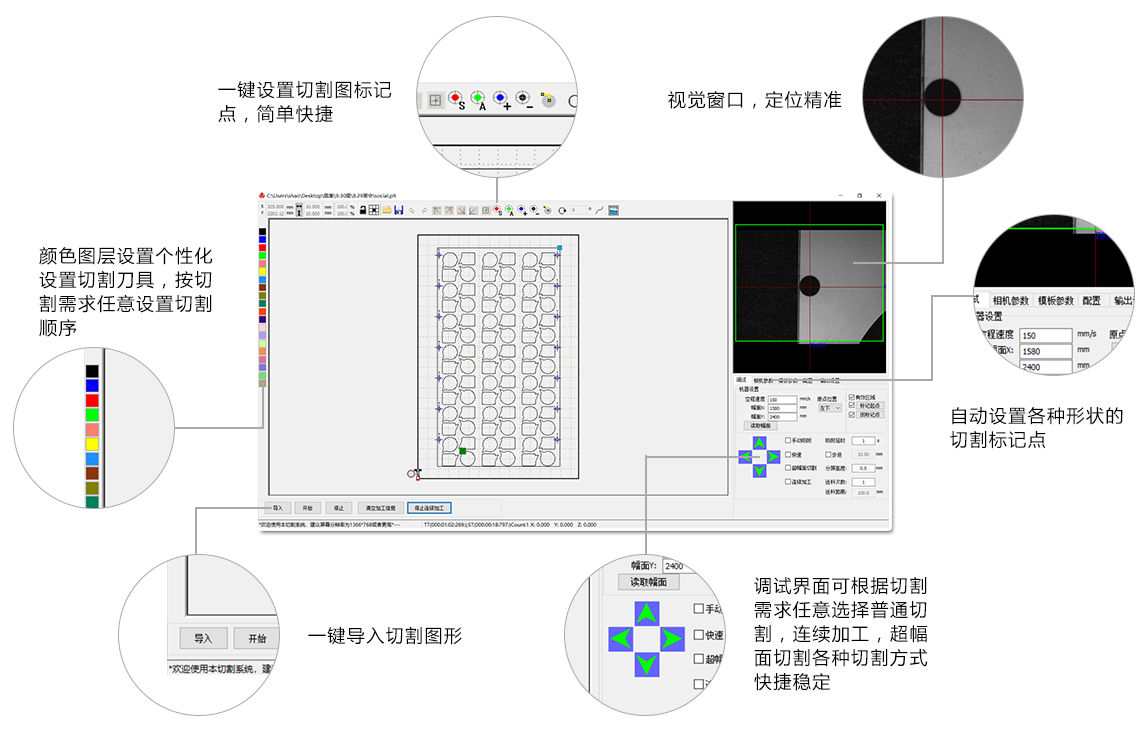

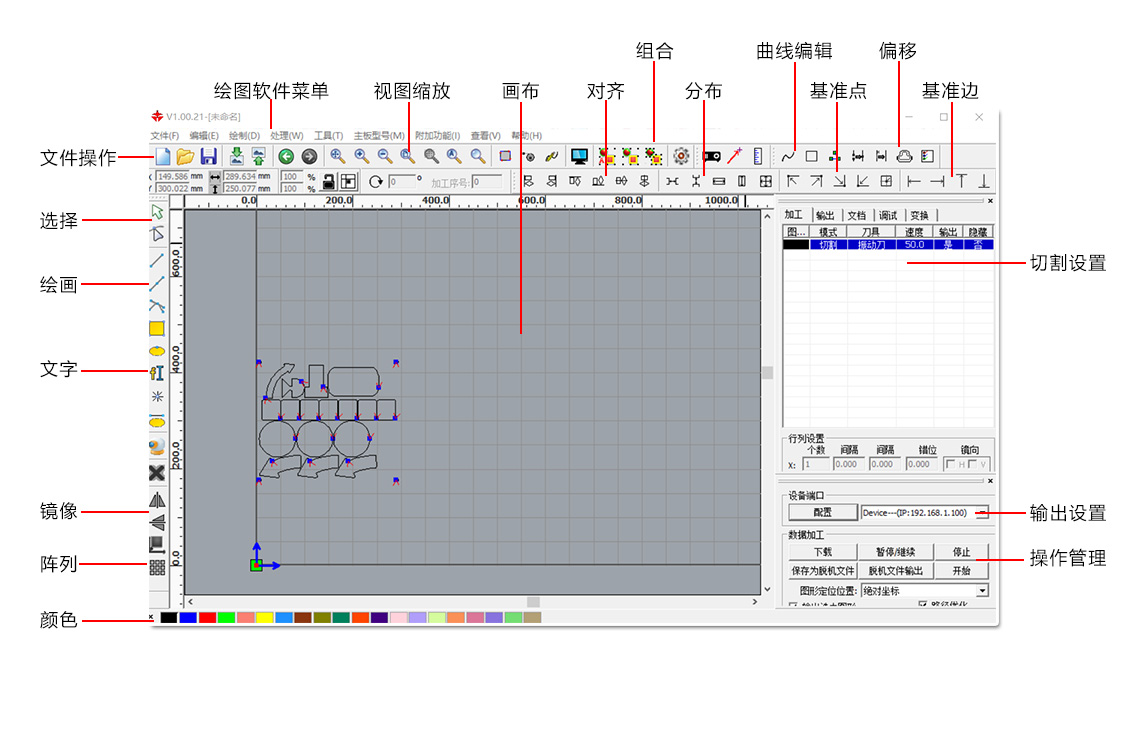

Digital cutting machine software features
The Dmais digital cutting machine uses self-developed CAM software, and user needs are perfectly integrated into the software design. It is a fully automatic intelligent cutting system that integrates the three advantages of performance, speed and quality. It can quickly complete various processes such as full cutting, half cutting, milling, punching, creases, marking, etc. It is simple and convenient to operate, with rich and practical functions, and can meet user customization needs with the tool quick change module.

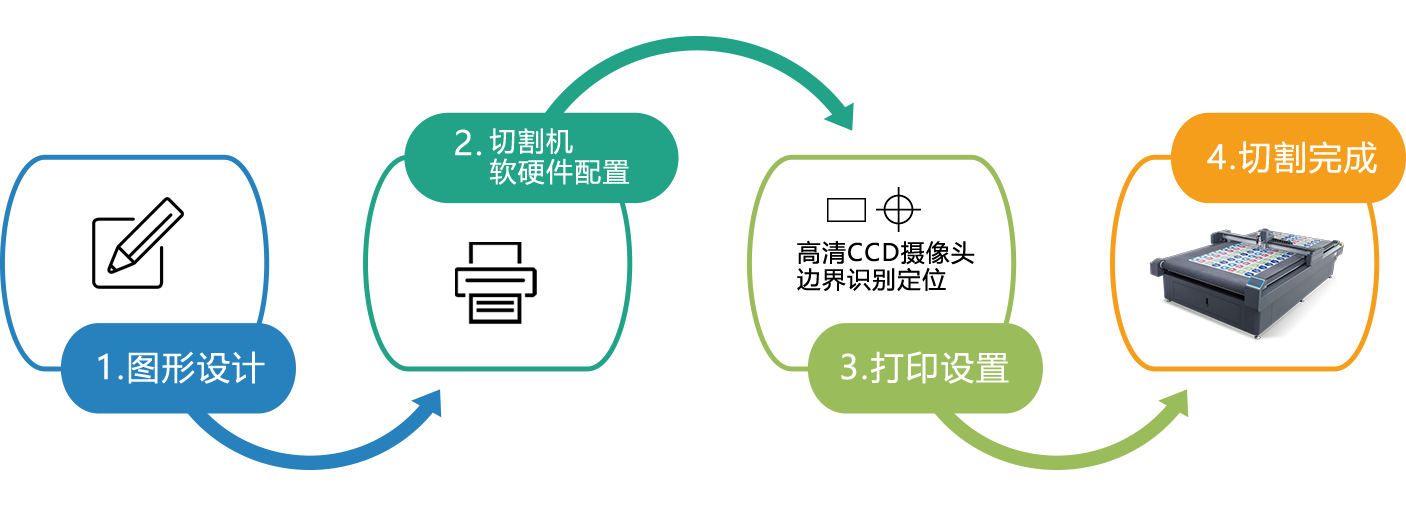

Cutting process diagram
Advertising Industry Cutting Machine Computer Cutting MachineTechnical Parameters
| Technical Parameters/Model | DMS-2516A |
|---|---|
| Functionality | Convenient tool changes, equipped with vibrating blade, cutting, half-cutting, and embossing functions, graphic and standard positioning with optional CCD positioning for industrial machine positioning |
| Safety Equipment | Safety monitoring system |
| Horizontal Speed | 800-1500 mm/sec |
| Cutting Speed | 200-1200 mm/s (depending on different cutting materials) |
| Cutting Depth | 40mm (depending on different cutting materials) |
| Material Fixed Method | Vacuum adsorption |
| Cutting Accuracy | ±0.05 mm |
| Repeatability | ±0.01 mm |
| Service Life | Based on network |
| Transmission Interface | ≤350 m |
| Network Transmission Distance | 2GB |
| Network Cable | Digital service return, direct line guide, step belt, silk red, and axle wheel |
| Transmission System | 7.5-11 Hz |
| Efficiency | 380V ±10% |
| Power Supply | 2500×1600 mm |
| Working Range | 1600 mm |
| Maximum Cutting Thickness | 3521×2186×1280 mm |
| Product Dimensions | 3670×2340×1500 mm |
| Packaging Dimensions | 1150 kg |
